Public
Pays by plate. Settled vehicles pass; unsettled ones pay by QR at the barrier without leaving the car.
asasiiparking
The car park platform your property owns.
asasii Parking runs the lanes, the season programme, the tenant allotments and the collections for a commercial property or a portfolio of them. No concession, no revenue share, no cash on site. Every device, every record and every ringgit stays with the owner.
LPR read rate97.8%day and night, across every lane
Cars that never stop at exit41%season, tenant and booked vehicles
Cash handled on siteRM 0cards, QR and account only
Platform availability target99.9%warm standby, tested restore
How a vehicle goes through
No ticket, no card at the barrier, no cash. The plate is read on the way in, the session runs while the car is parked, and the exit lane settles it without a person in the loop.
Entry · recognisedWYK 1230WelcomeSeason pass · Level P1 reserved
Entry · publicJKL 9012WelcomePay by plate before you leave · cashless
Exit · paidJKL 9012Paid · drive safelyRM 7.00 · receipt sent
Exit · unpaidPJK 5590RM 11.00 to payScan the QR to pay here, or reverse to the pay station
- 01
Entry
The camera reads the plate as the vehicle approaches. Season, tenant and booked plates are recognised and the barrier lifts. A public vehicle is welcomed and told to pay by plate before leaving.
- 02
While parked
The session runs against the plate. The driver pays from a phone, a pay station or a merchant counter, and tenant validations apply to the session automatically.
- 03
Exit
A settled plate drives straight through. An unsettled one sees the amount on the lane display and pays by QR at the barrier. Nothing at the exit depends on an attendant.
Who stops at the exit, and who does not
The exit lane sets the throughput of the whole car park. The platform is built so that most vehicles never stop there at all.
Season
Recognised on entry and exit. The pass is tied to the plate, reserved levels are enforced by the lane, renewals happen in the customer account.
Tenant
Allotments from the lease. The tenant manages its own vehicles and validations in its portal; the property sees the usage and bills the excess.
Booked
A bay reserved ahead for an event or a visitor. The plate is expected, the barrier lifts, the booking closes on exit.
Season parking from the lease
Tenant parking is a term of the lease, not a separate product. The platform derives the quota from the tenancy and bills it on the rent cycle, e-invoiced under the property's tax number.
- 01
Quota from floor area
Each tenancy carries a parking allotment derived from its lettable area, on the same basis the lease uses.
- 02
Season vehicles, up to the quota
The tenant registers plates against the allotment. Every registered plate is recognised at the lane from the next morning.
- 03
Extra vehicles, beyond the quota
Plates above the allotment are charged at the season rate, approved by the property, and shown separately on the invoice.
- 04
One invoice, on the rent cycle
Parking appears as a line on the tenant's regular invoice, e-invoiced and reconciled with the tenant's statement.
Five consoles, one for each level of the organisation
Nobody shares a screen. The operator, the property manager, the IT team, the group and the customer each get a console built for the decisions they make.

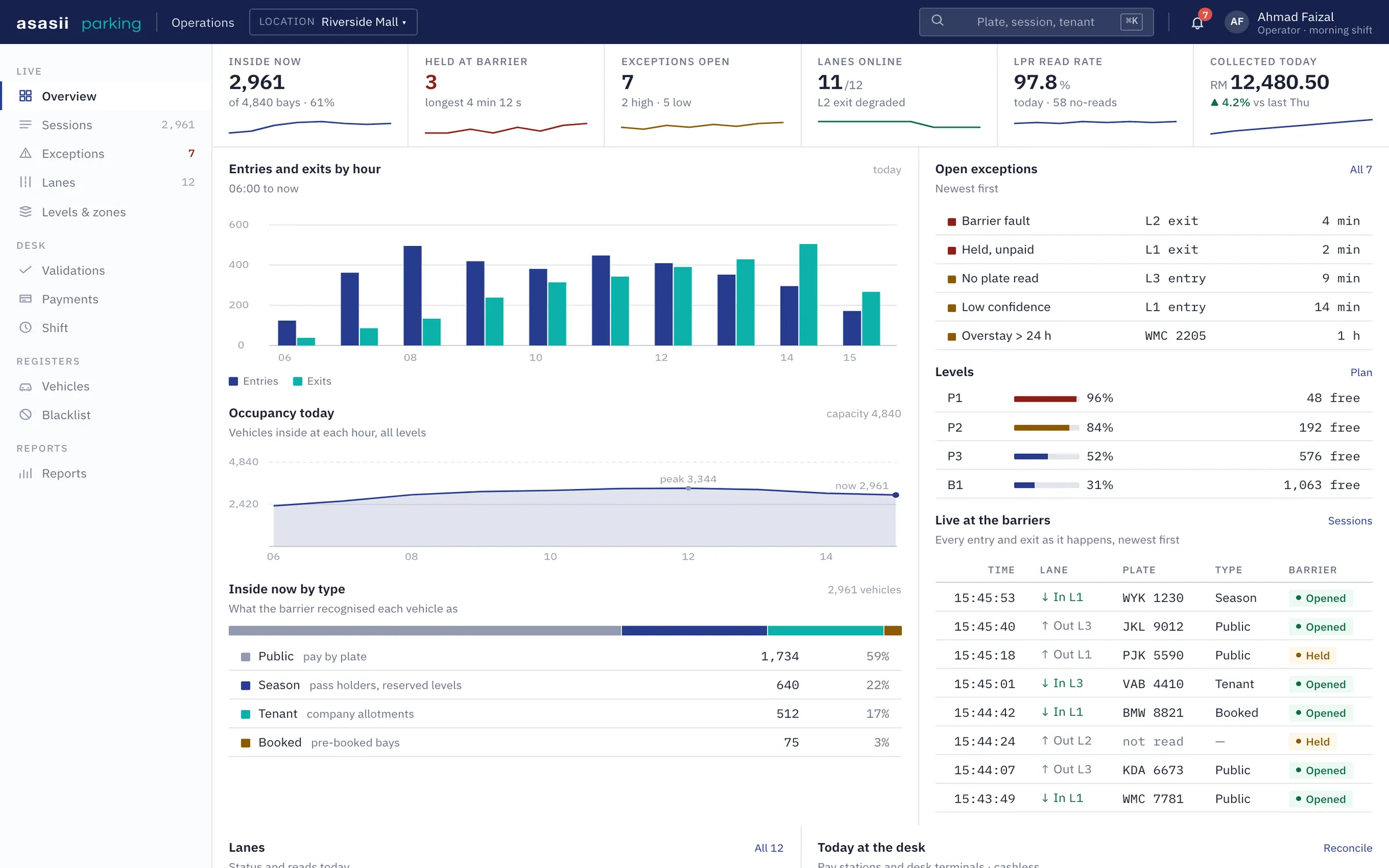

The desk and the lanes, live
Operations

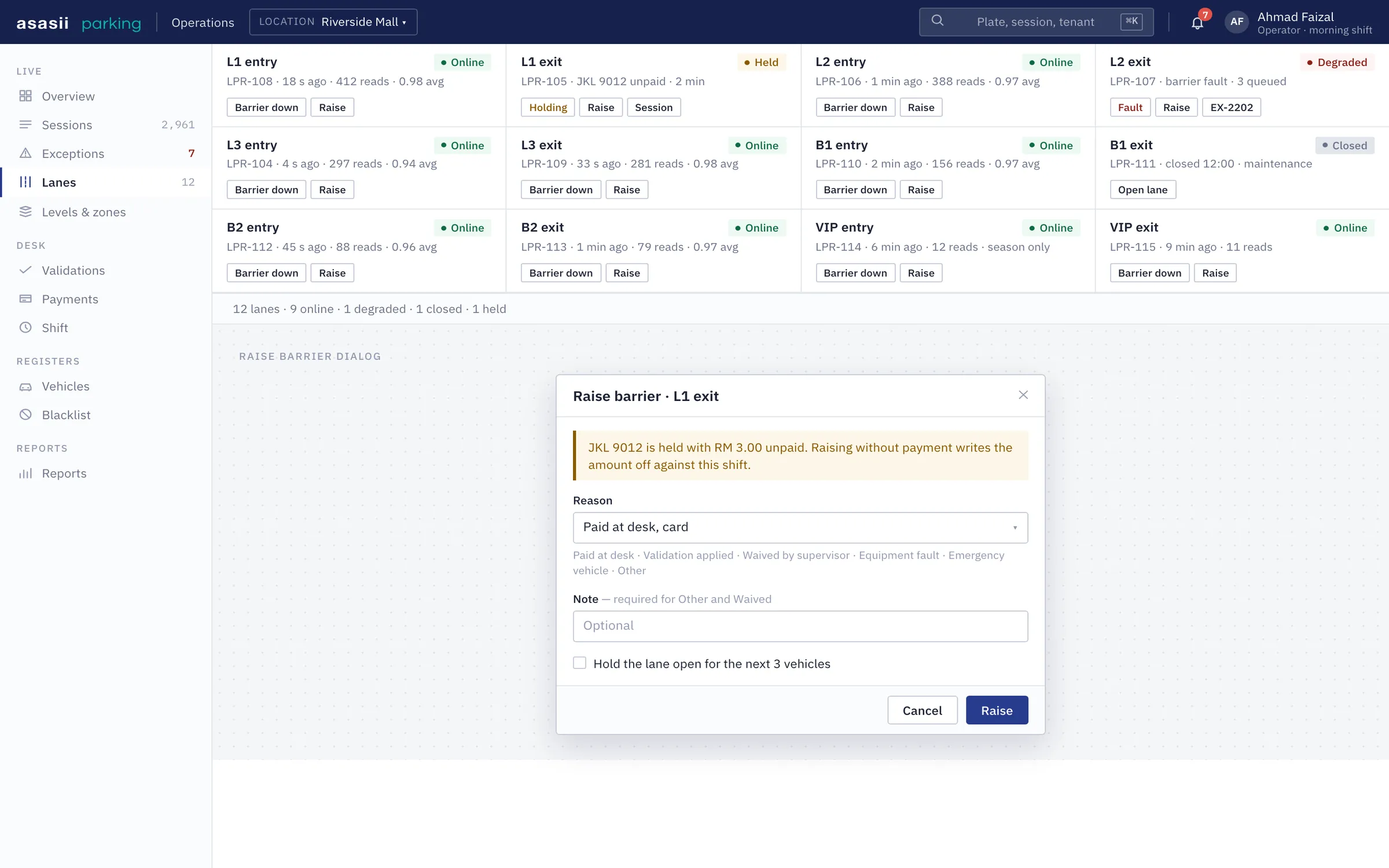

- Inside now, held at barrier, open exceptions, lanes online, read rate and collections on one screen

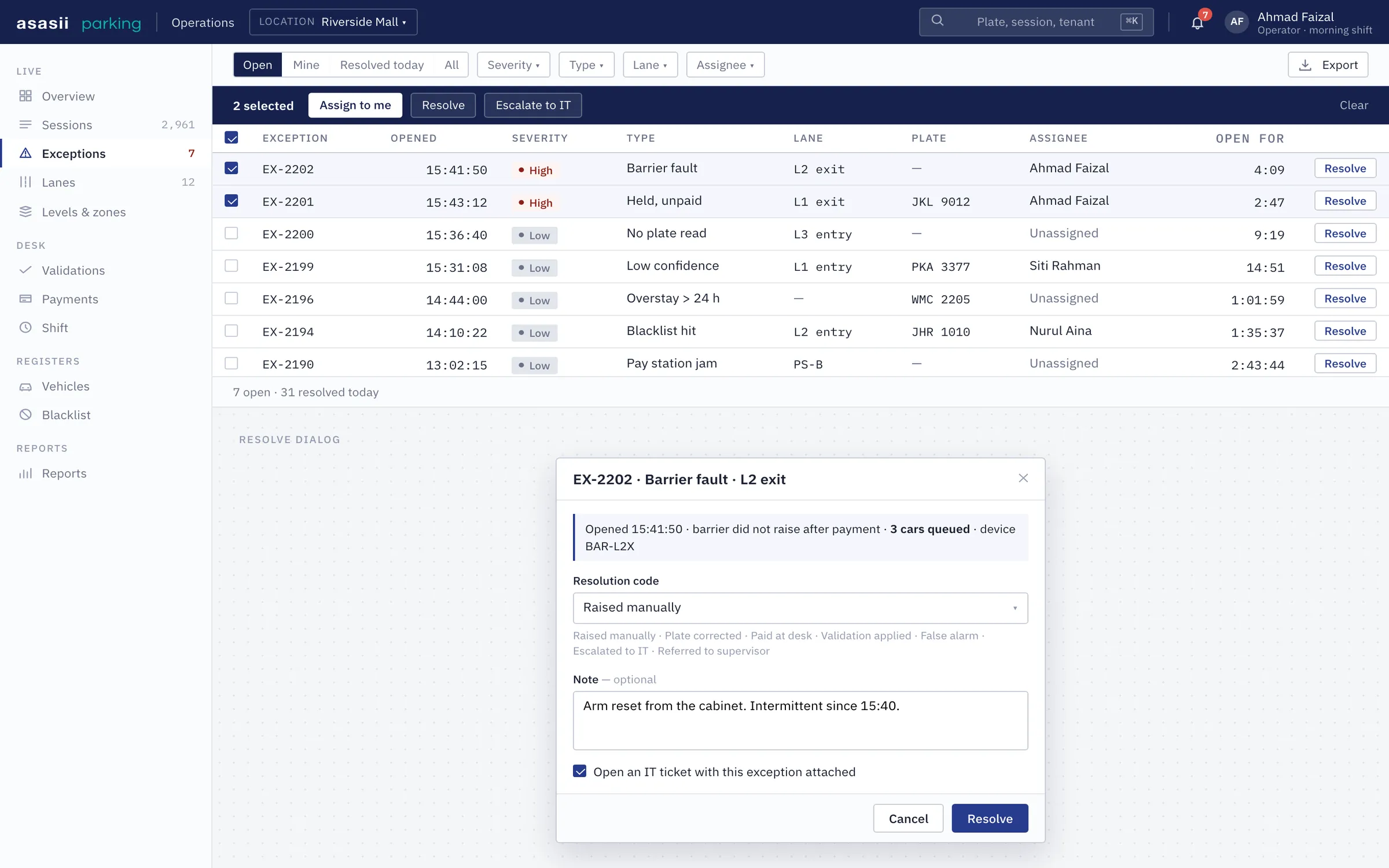

- Every exception with its lane, its cause and how long it has waited

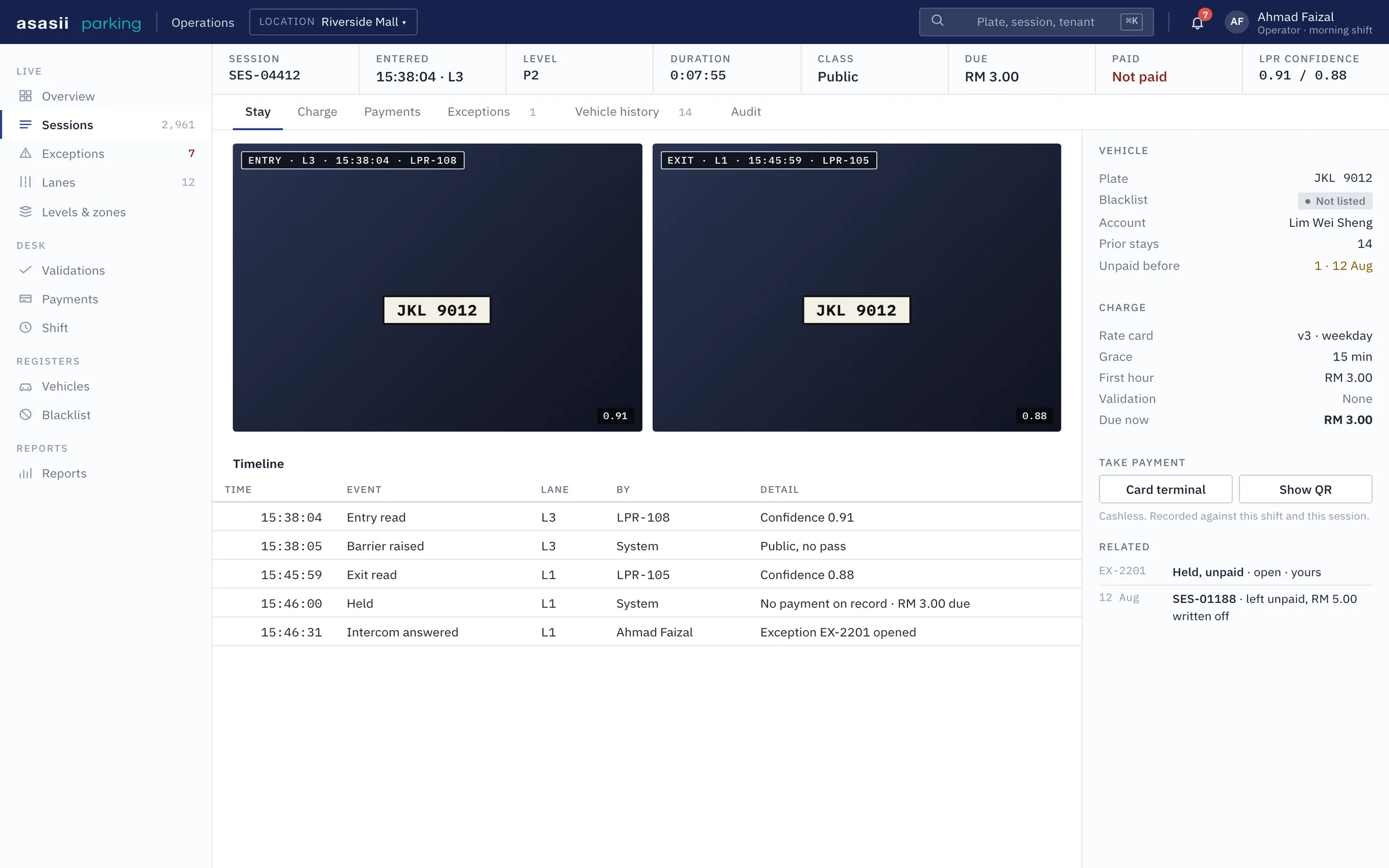

- Sessions, validations, payments and the shift, with a full timeline per vehicle
On site
The touchpoints at the property share the same platform and the same design system as the consoles, so a driver, a merchant and an attendant see the same session.
Pay stations, counters, tablets and the control room
On site

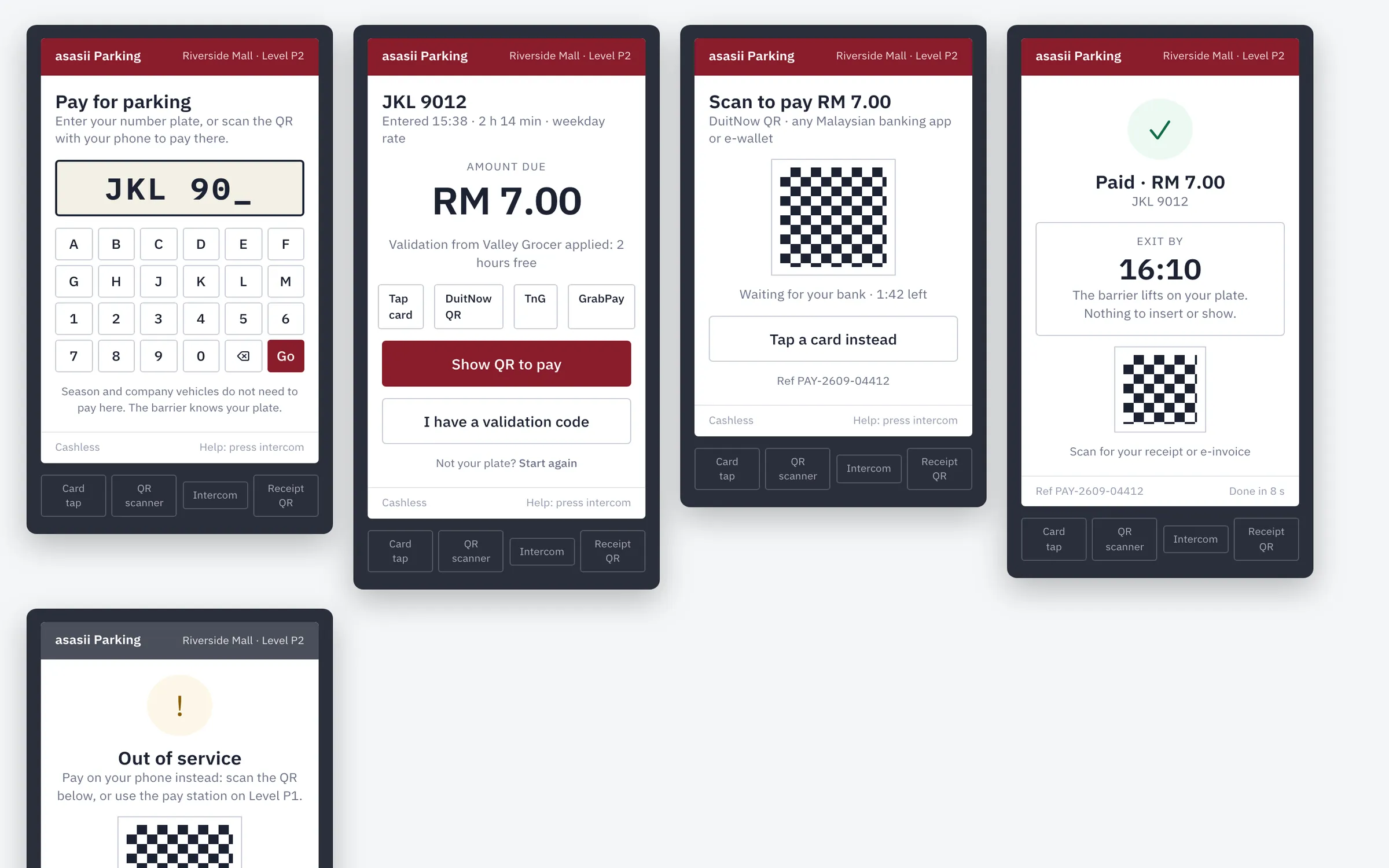

- Pay stations take cards and QR only, one per level lobby

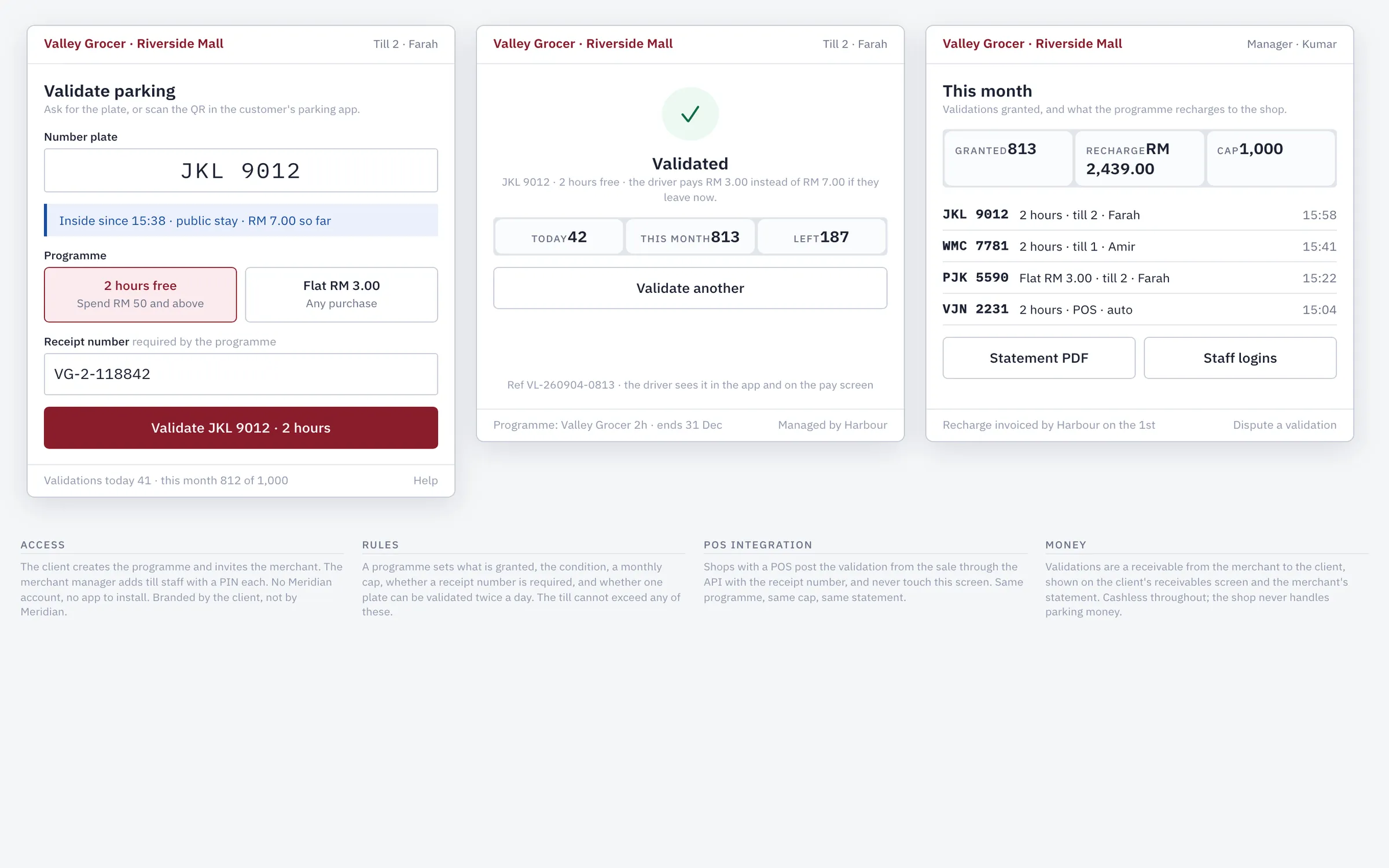

- Merchant counters validate a customer's parking in two taps

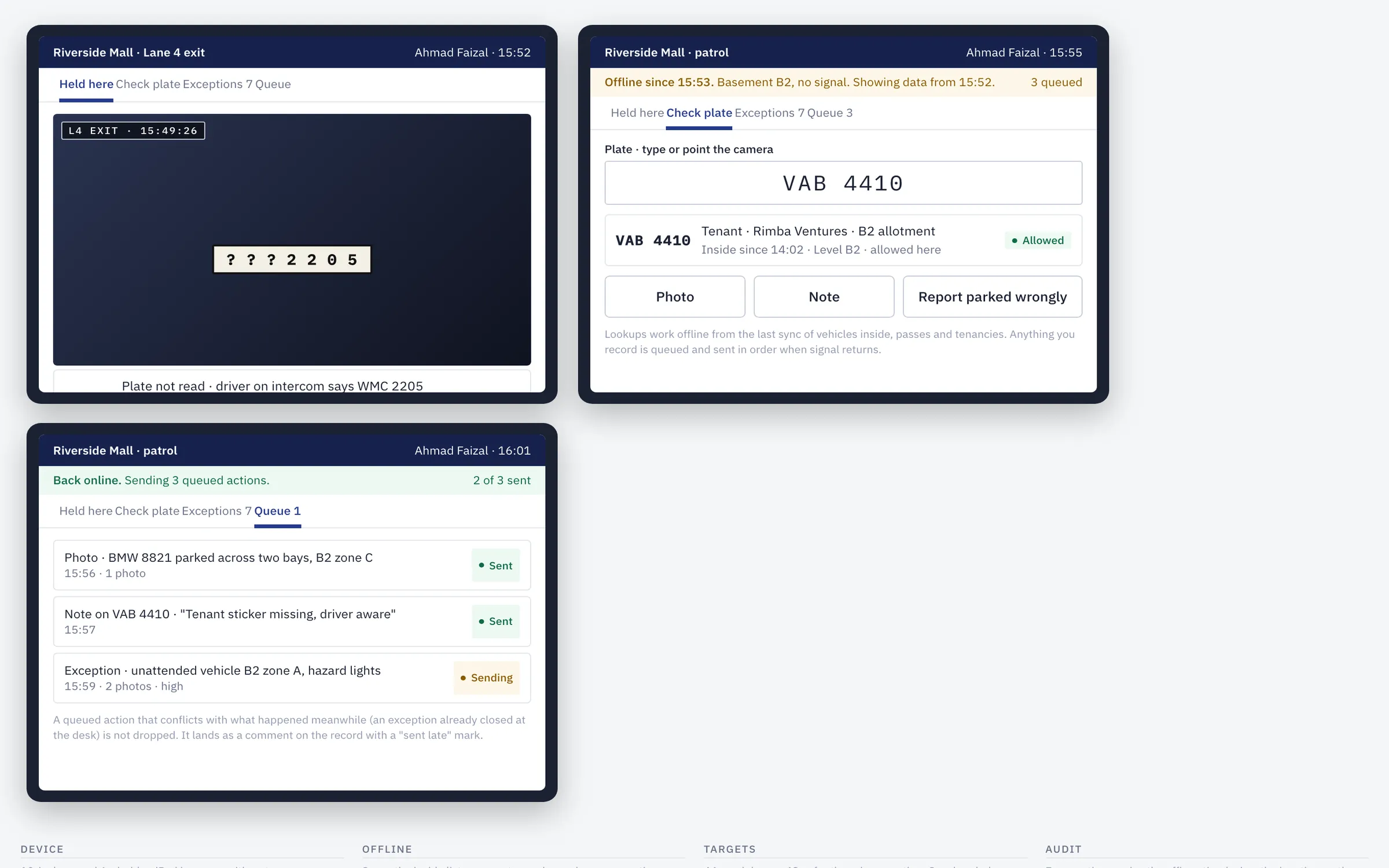

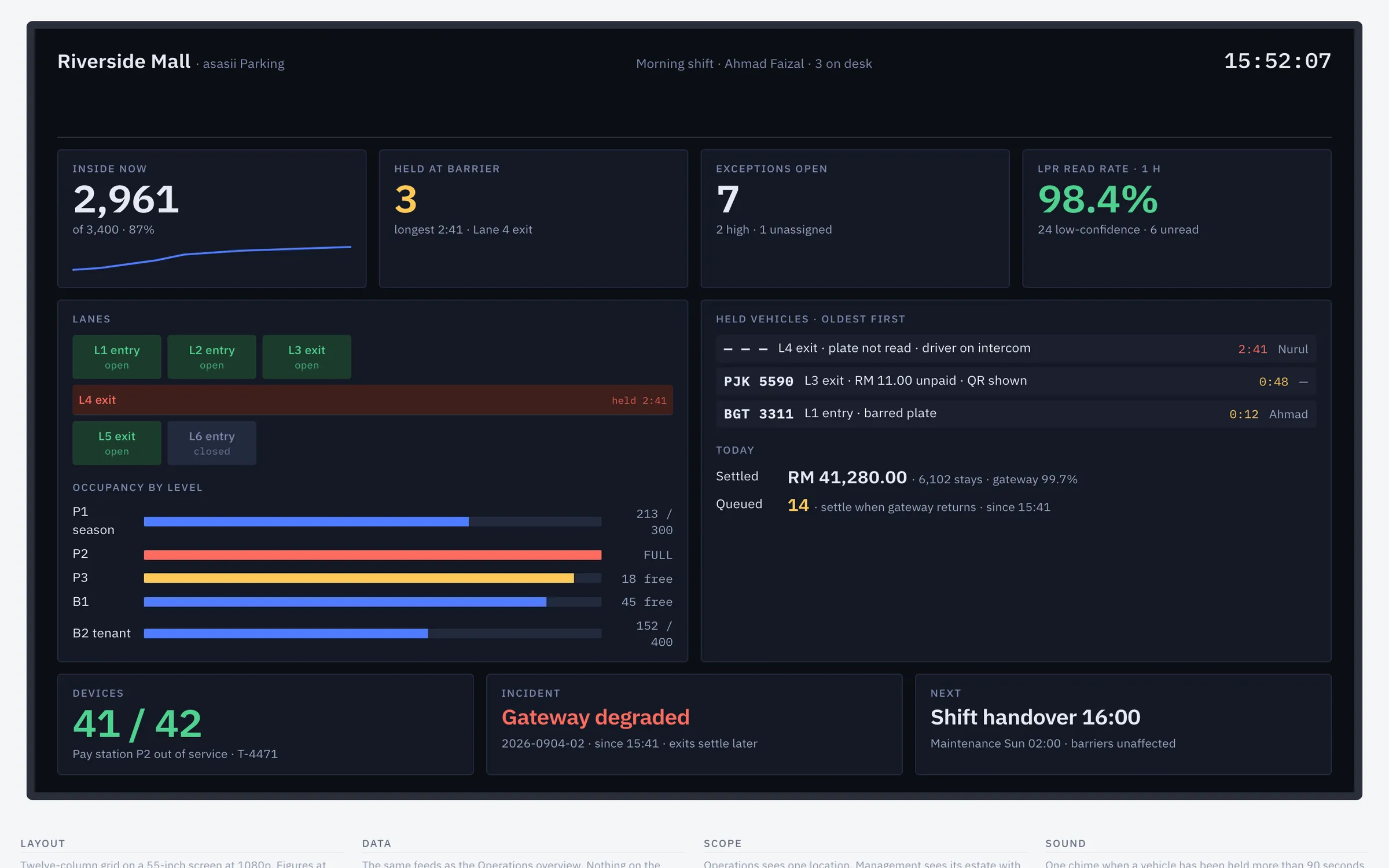

- Attendants work exceptions from a tablet; the control room reads a wallboard
Built to run
Two device types cover a lane. Everything else is software, hosted and operated by idataraya under one agreement.
At the lane
An asasii LPR controller reads the plate and drives the display. A high-speed barrier opens on its word. Two devices per lane, nothing else to fail.
Lanes that survive a network drop
Every lane talks to the platform over MQTT with a persistent session. A lane keeps working through a network drop and syncs when it returns.
Hosted in Malaysia
Runs in AWS Kuala Lumpur with a warm standby in Singapore, nightly backups and a tested restore. Recovery objectives are published in the IT console.
Integrated, not isolated
The tenant and lease register is read from the property's system of record. Collections settle host-to-host with the bank. Finance receives a reconciled export.
Governance and security
Built for the questions an IT steering committee and an internal audit will ask before signing.
Identity and access
Single sign-on with the property's identity provider, MFA for every console, and roles scoped by client, location and function.
Audit trail
Every action in every console is recorded with who, when, where and the previous value. Exportable, retained on the property's schedule.
Data protection
Plate images and personal data are kept under the Personal Data Protection Act 2010, with retention periods set per data class and purged on schedule.
Out of card scope
Card data never touches the platform. Payments are taken by the acquirer's terminals and gateway, which keeps the property's PCI scope where it already is.
Service and continuity
One annual agreement covers the software, the hosting, the monitoring and the people who attend to the site.
Defined response times
Severity-based response and restoration targets, measured and reported monthly. A lane down is a priority one.
Monitoring and a status page
Devices, lanes and services are monitored continuously. A public status page shows availability and incidents to every client.
Warm standby, tested restore
A failover drill and a full restore are run on a schedule and the results are recorded in the IT console for the property to read.
On-site attendance
Preventive maintenance visits, spare devices held for the site, and a technician on site within the agreed window when hardware fails.
Where the money goes
There is no cash anywhere in the system, so there is nothing to count, float, collect or lose.
- 01
No cash anywhere
Every payment is a card, QR or account charge. Pay stations take cards and QR only.
- 02
Host to host with the bank
Collections settle directly with the acquiring bank, not through a third party's wallet.
- 03
Into the property's own account
Settlement lands in the account the property nominates. Nobody else holds the money.
- 04
E-invoiced under the property's tax number
Every session and every season invoice is issued in the property's name, compliant with the national e-invoicing mandate from day one.
- 05
Reconciled from the statement
The bank statement is matched to sessions automatically. Finance reads a reconciled report, not a pile of receipts.
What the property owns
The commercial model is the opposite of a concession. The property buys a system and keeps everything it produces.
The system, the equipment and the data
Licences, devices and every record belong to the property. Export is a button, not a negotiation.
No percentage of collections
idataraya is paid to build and run the platform, not a share of what the car park earns.
Maintained for a yearly fee
Software, hosting, monitoring and on-site attendance under one annual agreement with defined response times.
Adding a site later
A second property joins the same platform with its own lanes, its own account and the same consoles. The group console reads them side by side.
See it on your own car park
Send us the site, the lane count and the tenancy schedule. We come back with a lane plan, a device list and a proposal.
Request a proposal
